Jenny Single Stage Electric Stationary Air Compressors

Jenny Single Stage Electric Stationary Air Compressor

You are here: Home > Stationary > Electric Stationary Tank Mounted Compressors > Single Stage Electric Stationary Tank Mounted Air Compressors

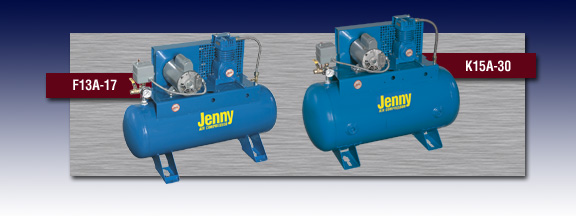

Jenny Single Stage Electric Stationary Air Compressor - Models F34A-17 and K15A-30

Standard Features

Heavy-duty single or two stage cast iron compressor pump - Made in Somerset, PA USA
Splash lubricated
Belt driven with a large flywheel for extra cooling and easier start-up
Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
Directional air shroud for reduced pump temperatures
Totally enclosed heavy-duty belt guard
Tanks are powder coated and ASME certified
60 gallon tanks and larger are ASME National Board certified
Protectively mounted fittings
Manual tank drain(s)

Large canister intake filter with replaceable filter elements
Special unloading valves to assist in motor starting
Tank gauge
Pressure relief safety valve
Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
Magnetic starter is included on all 5HPand larger units
Industrial/Commercial grade UL Listed electric motor
Thermal overload motor protection
Alternator and magnetic starter are standard on all duplex models

Single Stage

Model	Pump	HP	Tank Gallon	Power Supply	Pump RPM	125 PSI CFM Disp	Del'd Air
F12A-17	F	1/2	17	115 Volt (through 2 HP) or 230 Volt 1 Phase 208, 230, 460 or 575 Volt 3 Phase	680	3.4	2.2
F34A-17		3/4			1080	5.3	3.1
F34A-30			30
K1A-30	K	1			560	6.2	4.0
K15A-30		1-1/2			870	9.8	6.2
K15A-60			60
K2A-30		2	30		1140	13.1	8.0
K2A-60			60
GC2A-30	GC		30		480	13.1	9.1
GC2A-60			60
GC3A-30		3	30		770	21.0	14.0
GC3A-60			60
GC5A-60		5	60		1020	27.8	17.8
GC5A-80			80
J5A-60	J		60		780	28.7	19.0
J5A-80			80

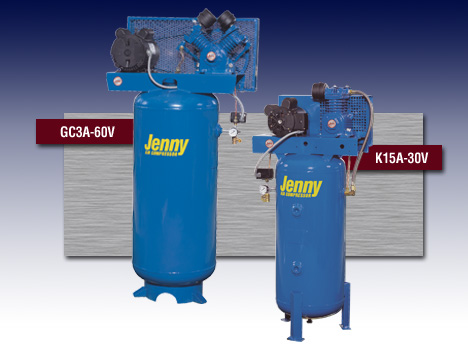

Jenny Single Stage Electric Stationary Air Compressor - Models GC3A-60V and K15A-30V

Options
