Jenny Portable Hand Carry Air Compressors

You are here: Home > Portable Compressors > Hand Carry Portable Air Compressors


Download and Print Hand Carry Portable Air Compressor Literature

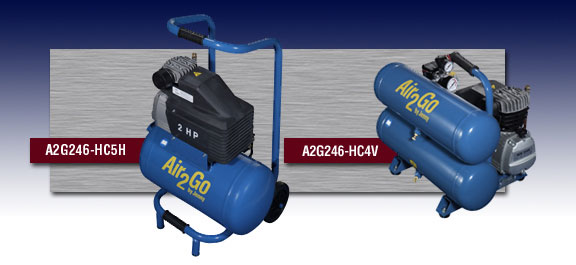

Jenny Portable Hand Carry Air Compressors Models A2G246-HC5H and A2G246-HC4V
Standard Features
  • Lightweight, compact and extremely portable
  • Single stage, direct coupled, oil lubricated pump
  • Cast iron cylinder for extended pump life
  • Aluminum head for better heat dissipation
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Canister inlet filter with replaceable filter elements
  • Forced ventilation cooling system
  • Powder coated heavy duty steel tank and frame assembly
  • Protectively mounted fittings
  • Anti-vibration feet
  • Air line regulator and two gauges for line and tank pressure
  • Pressure relief safety valve
  • Manual tank drain(s)
  • Special unloading valves to assist in motor/engine starting

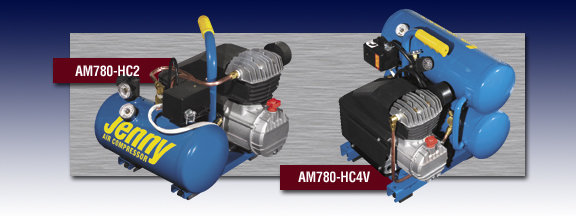

Jenny Portable Hand Carry Air Compressors Models AM780-HC2 and AM780-HC4V

Model
HP
Tank Gallon
Drive
CFM@
100 PSI
CFM@
125 PSI
A2G246-HC4V
2
4.8
115 Volt
4.0
3.4
A2G246-HC5H
5.3
AM780-HC2
1.5
4.1
3.6
AM780-HC4V
4
AM780-HC4H
AM780-HC6V
6
AM840-4HG-HC4V
4
4
Gas/Honda
4.7
4.4

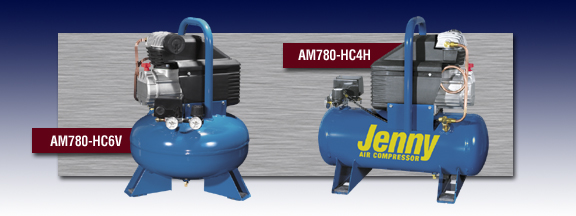

Jenny Portable Hand Carry Air Compressors Models AM780-HC6V and AM780-HC4H

Electric Units

  • Start/Stop pressure switch control set at 105-125 PSI
  • On/Off Switch
  • Thermal overload motor protection with manual reset
  • 6 ft power cord
Jenny Portable Hand Carry Air Compressors Model AM840-HG-HC4V

Gasoline Engine

  • High quality pilot valve
  • Pneumatic throttle idle control
  • Constant run control set at 105-125 PSI
  • Recoil start Honda GX Series OHV Engine
