Jenny Duplex Electric Stationary Air Compressor

You are here: Home > Stationary > Electric Stationary Tank Mounted Compressors > Duplex Electric Stationary Tank Mounted Air Compressors


Download and Print Duplex Electric Stationary Tank Mounted Air Compressors Literature

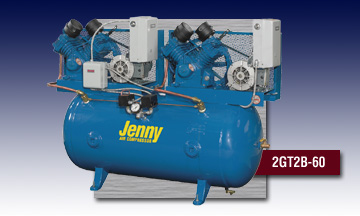

Jenny Duplex Electric Stationary Air Compressor - Model 2GT2B-60



Standard Features
  • Heavy-duty single or two stage cast iron compressor pump - Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Directional air shroud for reduced pump temperatures
  • Totally enclosed heavy-duty belt guard
  • Tanks are powder coated and ASME certified
  • 60 gallon tanks and larger are ASME National Board certified
  • Protectively mounted fittings
  • Manual tank drain(s)
  • Large canister intake filter with replaceable filter elements
  • Special unloading valves to assist in motor starting
  • Tank gauge
  • Pressure relief safety valve
  • Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
  • Magnetic starter is included on all 5HP and larger units
  • Industrial/Commercial grade UL Listed electric motor
  • Thermal overload motor protection
  • Alternator and magnetic starter are standard on all duplex models

Single Stage Duplex
Model
Pump
HP
Tank Gallon
Pump RPM
125 PSI
CFM Disp
Del'd Air
Single Stage
2(K15A)-60
K
3
60
870
19.6
12.4
2(GC5A)-80
GC
10
80
1020
55.6
35.6
Two Stage
175 PSI
2(GT5B)-120
GT
10
120
900
36.6
30.4
2(W5B)-120
W
762
42.4
35.0
2(U10B)-120
U
20
710
87.2
70.4
2(U10B)-240
240
2(T25B)-240
T
50
780
214.0
166.0



Options

  • Constant run
  • Dual control
  • Low oil level switch
  • Oil sight glass
  • Automatic tank drain
  • ASME National Board tank
  • Magnetic starter
  • Control circuit transformer
  • Vertical tank
  • Air line filter
  • Lubricator
  • Aftercooler
  • Dryer
  • Other pressures available upon request
