Jenny Two Stage Electric Stationary Air Compressors

Jenny Two Stage Electric Stationary Air Compressor

You are here: Home > Stationary > Electric Stationary Tank Mounted Compressors > Two Stage Electric Stationary Tank Mounted Air Compressors

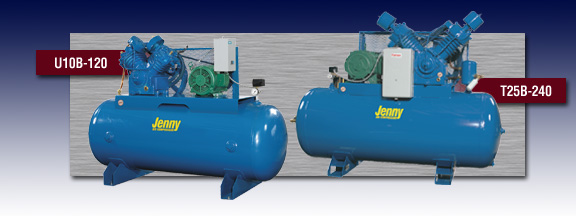

Jenny Two Stage Electric Stationary Air Compressor - Models U10B-120 and T25B-240

Standard Features

Heavy-duty single or two stage cast iron compressor pump - Made in Somerset, PA USA
Splash lubricated
Belt driven with a large flywheel for extra cooling and easier start-up
Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
Directional air shroud for reduced pump temperatures
Totally enclosed heavy-duty belt guard
Tanks are powder coated and ASME certified
60 gallon tanks and larger are ASME National Board certified
Protectively mounted fittings
Manual tank drain(s)

Two Stage

Model	Pump	HP	Tank Gallon	Power Supply	Pump RPM	175 PSI CFM Disp	Del'd Air
GT2B-60	GT	2	60	115 Volt (through 2 HP) or 230 Volt 1 Phase 208, 230, 460 or 575 Volt 3 Phase	450	9.1	7.1
GT2B-80			80
GT3B-60		3	60		660	13.4	10.7
GT3B-80			80
W3B-60	W		60		440	12.2	10.7
W3B-80			80
GT5B-60	GT	5	60		900	18.3	15.2
GT5B-80			80
GT5B-120			120
W5B-60	W		60		760	21.1	17.5
W5B-80			80
W5B-120			120
U75B-80	U	7-1/2	80		610	38.0	27.2
U75B-120			120
U10B-80		10	80	208, 230, 460 or 575 Volt 3 Phase Only	710	43.6	35.2
U10B-120			120
T15B-120	T	15	120		520	72.4	56.5
T15B-240			240
T20B-120		20	120		670	92.6	72.2
T20B-240			240
T25B-120		25	120		780	107.0	83.0
T25B-240			240

Options
