Jenny Base Plate Mounted Air Compressors

You are here: Home > Stationary > Base Plate Mounted Compressors >
Base Plate Mounted Electric Motor Air Compressors


Download and Print Base Plate Mounted Electric Motor Air Compressors Literature



 Jenny Base Plate Mounted Air Compressor - Models F34A-B and K15A-B


Standard Features
  • Heavy-duty single or two stage cast iron compressor pump Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Directional air shroud for reduced pump temperatures
  • Totally enclosed heavy-duty belt guard
  • Powder coated, extra heavy steel base plate
  • Large canister intake filter with replaceable filter elements
  • Pressure relief safety valve
  • Pressure gauge

Single Stage

Model
Pump
HP
Power Supply
Pump RPM
125 PSI
CFM Disp
Del'd Air
F12A-B
1/2

115 Volt
(through 2 HP)
or 230 Volt 1 Phase

208, 230,460 or
575 Volt 3 Phase

680
3.4
2.2
F34A-B
3/4
1080
5.3
3.1
K1A-B
K
1
560
6.2
4.0
K15A-B
1-1/2
870
9.8
6.2
K2A-B
1140
13.1
8.0
GC2A-B
GC
480
13.1
9.1
GC3A-B
770
21.0
14.0
GC5A-B
5
1020
27.8
17.8
J5A-B
J
780
28.7
19.0


Electric Units
  • Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
  • Control group (not mounted)
  • Check valve
  • Magnetic starter is included on all 5 HP and larger units
  • Industrial/Commercial grade UL listed electric smotor
  • Thermal overload motor protection

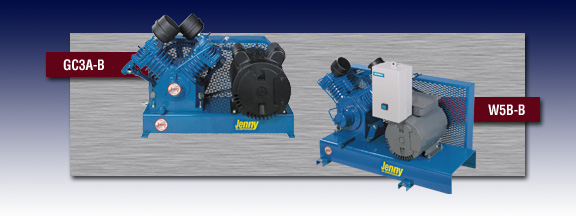

Jenny Base Plate Mounted Air Compressor - Models GC3A-B and W5B-B


Two Stage
Model
Pump
 HP
Power Supply
 Pump RPM
 175 PSI
CFM Disp
Del'd Air
GT2B-B
GT
2
115 Volt
(through 2 HP)
or 230 Volt
1 Phase

208, 230, 460
or 575 Volt
3 Phase
450
9.1
7.1
GT3B-B
3
660
13.4
10.7
W3B-B
W
440
12.2
10.7
GT5B-B
GT
5
900
18.3
15.2
W5B-B
W
760
21.1
17.5
U75B-B
U
7-1/2
610
38.0
27.2
U10B-B
10
208, 230, 460
or 575 Volt
3 Phase Only
710
43.6
35.2
T15B-B
T
15
520
72.4
56.5
T20B-B
20
670
92.6
72.2
T25B-B
25
780
107.0
83.0
