Jenny Single Stage Electric Motor Wheeled Portable Air Compressors

You are here: Home > Jenny Portable Compressors > Jenny Single Stage Wheeled Portable Air Compressors > Jenny Single Stage Wheeled Portable Electric Motor Air Compressors


Download and Print Jenny Single Stage Wheeled Portable Electric Motor Air Compressors

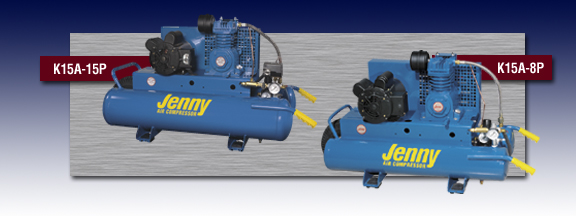

Jenny Single Stage Wheeled Portable Electric Motor Air Compressor - Models K15A-15P and K15A-8P


Standard Features
  • Heavy-duty single stage cast iron compressor pump Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Directional air shroud for reduced pump temperatures
  • Totally enclosed heavy-duty beltguard
  • 8 & 15 gallon tanks are low profile, powder coated twin tank receivers
  • 17 and 30 gallon tanks are powder coated and ASME certified
  • Convenient lifting handles
  • Anti-vibration feet
  • Pneumatic tire(s)
  • Protectively mounted fittings
  • Manual tank drain(s)
  • Large canister intake filter with replaceable filter elements
  • Special unloading valves to assist in motor starting
  • Stainless steel braided discharge hose
  • Tank gauge
  • Regulator and outlet pressure gauge
  • Pressure relief safety valve
  • Designed, tested and proven to meet the demands of the construction and rental industry

Jenny Single Stage Wheeled Portable Electric Motor Air Compressor - Model K15A-15P2

Electric Motor

  • Constant run control set at 105-125 PSI
  • High quality pilot valve
  • Industrial/Commercial grade UL Listed electric motor
  • Thermal overload motor protection
  • 6 ft power cord

MODEL
Pump
HP
Tank
Gallon
Power
supply

CFM @
100 PSI

CFM @
125 PSI
K1A-8P
K
1
8
115 or 230 Volt
1 Phase
4.2
4.0
K1A-15P
15
K1A-17P
17
K1A-30P
30
K15A-8P
1.5
8
6.5
6.2
K15A-15P
15
K15A-17P
17
K1A-30P
30
K2A-8P
2
8
8.4
8.0
K2A-15P
15
K2A-17P
17
K2A-30P
30

G3A-8P

G
3
8

230 Volt
1 Phase

13.8
13.5
G3A-15P
15
G3A-17P
17
G3A-30P
30
G5A-8P
5
8
18.3
17.8
G5A-15P
15
G5A-17P
17
G5A-30P
30
J5A-30P
J
30
19.4

19.0

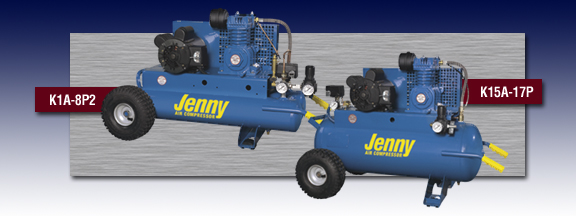

Jenny Single Stage Wheeled Portable Electric Motor Air Compressor - Models K1A-8P2 and K15A-17P

Jenny Single Stage Wheeled Portable Electric Motor Air Compressor - Model G5A-30P

Options

  • Start-Stop control
  • Dual control
  • Dual voltage switch
  • On-Off switch
  • Two wheel option (8 & 15 gallon models)
  • Oil sight glass
  • Air line filter
  • Lubricator
  • Other pressures available upon request
